Battle of the Thermal Solutions: Comparing Thermal Paste vs Thermal Pad

When it comes to keeping your PC cool, every detail counts—especially the material between your processor and its heatsink. That’s why people often debate thermal paste vs thermal pads. Both help move heat away from your components to keep them running smoothly, but they are made differently, used in different ways, and perform differently. In this article, we’ll compare thermal paste and thermal pads to help you choose the best option for your system.

What is a Thermal Interface Material (TIM)?

A TIM is a material placed between a hot device part, like a CPU, and its cooler.  Since air doesn’t conduct heat well, using a TIM prevents overheating and helps your device run better and last longer.

Common types of TIMs:

1. Thermal Paste: Thermal paste is a thin material ideal for tight fits, offering excellent heat transfer but no physical support.
2. Phase-Change Materials: Solid at room temp, soften when heated for easy gap filling.
3. Thermal Pads: Thermal pads are soft sheets that are easy to use and work well for uneven gaps, but they don’t transfer heat as well as thermal paste.
4. Thermal Tape: Thermal tape is a sticky strip that’s easy to apply and clean, providing decent heat transfer.
5. Thermal Adhesives: Permanent glue-like materials that transfer heat and bond strongly.
6. Gap Fillers: Gap fillers are gel materials that fill thick or uneven gaps, absorb shocks, and are easy to remove.
7. Metal TIMs: Liquid or soft metals with excellent heat transfer but tricky to use and potentially risky.

Choosing the right TIM depends on your device’s cooling needs and installation preferences.

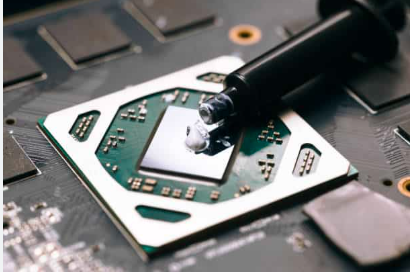

Understanding Thermal Paste

Composition

• Silicone or polymer base helps the thermal paste spread evenly.
• Thermally conductive fillers (e.g., aluminum oxide, boron nitride, silver, carbon materials).
• Additives for stability and durability.

Some thermal pastes contain up to 80% filler, greatly improving heat transfer.

Pros

1. It’s good at filling tiny gaps to help heat move better.
2. High thermal conductivity improves cooling.
3. It works best when applied carefully and in the right amount.
4. Works well with most CPUs, GPUs, and coolers.

Cons

1. Needs careful, even application to avoid a mess or reduced performance.
2. Dries out over time and requires reapplication.

Thermal paste is vital for cooling. For most users, ceramic or carbon-based pastes offer a good mix of safety and performance.

Understanding Thermal Pads

Thermal pads are solid, pre-made materials that help transfer heat from components like CPUs, VRMs, or RAM to a cooler by filling gaps caused by uneven surfaces.

Composition:

• Made from silicone or polymer bases, sometimes phase-change or silicone-free.
• Contains thermal fillers like aluminum oxide, boron nitride, graphite, or metal fibers.
• Thickness varies from less than 1 mm to several millimeters for large gaps.
• Some have adhesive backing for easy installation.

Pads soften under heat or pressure to better conform to surfaces.

Pros

1. Easy to apply, just place or peel and stick.
2. Clean, no mess compared to paste.
3. Great for bridging uneven or large gaps.
4. Electrically insulating, preventing shorts.
5. Sometimes reusable if undamaged.
6. Provide consistent thickness and contact pressure.

Cons

1. Lower thermal conductivity than paste (1–6 W/m·K vs. 2–12+ for paste).
2. Must be properly compressed (often 60%+) for best results.
3. Can degrade with heat cycles (dry out, harden, thin out).
4. It can leave a sticky residue when removed.

Thermal pads are easy to use and work well for simple setups or uneven surfaces. But for powerful cooling, thermal paste is a better option.

Choosing the Right Thermal Interface Material for Your Needs

Choosing the right TIM helps keep your electronics cool. The two main options are thermal paste and thermal pads, and the best choice depends on your needs.

• Thermal Paste:

Thermal paste is great for powerful cooling in gaming or overclocked CPUs and GPUs. It moves heat very well and fills tiny gaps between surfaces. But you need to apply it carefully, and it might need to be replaced after some time.

• Thermal Pads:

Thermal pads are ideal for power components or larger, uneven gaps. They’re easy to apply, durable, and resist drying out, but have lower heat conductivity and don’t fill tiny surface gaps as well as paste.

Consider your device’s cooling needs and installation preferences before choosing between paste and pads.

Common Myths and Misconceptions About Thermal Interface Materials (TIMs)

Many common ideas about thermal paste and pads are myths that can lead to poor cooling. Here’s the real truth to help you avoid these mistakes.

1. More paste means better cooling.
   • Wrong: Too much paste acts like an insulator and blocks heat.
   • Truth: A small, pea-sized dot is all you need to fill the gaps between your CPU and cooler.
2. Thermal paste lasts forever.
   • Wrong: It never wears out.
   • Truth: Paste dries out or shifts over time; replace every few years or if overheating occurs.
3. Stacking thermal pads helps.
   • Wrong: Using more pads makes it cooler.
   • Truth: Stacking pads leads to bad contact and worse cooling. Only use one pad that fits the gap properly.
4. You can use paste and pads together.
   • Wrong: Mixing both improves cooling.
   • Truth: It makes things worse. Choose one, either paste or pad.
5. Thicker paste works better.
   • Wrong: The thicker, the better.
   • Truth: Quality and even application matter most; thick paste can be tricky to apply properly.
6. Good paste means no need for a cooler.
   • Wrong: Paste alone can cool your CPU.
   • Truth: Paste transfers heat to the cooler, but a fan or heatsink is needed to remove it.
7. Any cloth works for cleaning.
   • Wrong: Paper towels or any rag is fine.
   • Truth: Some leave behind fibers that hurt cooling. Use a clean, lint-free microfiber cloth.
8. Thermal pads never wear out.
   • Wrong: They last forever.
   • Truth: Pads can dry up or get damaged over time. Check and replace them if needed.

Knowing what works helps you cool your system better and keep your devices running longer!

Tips for Getting the Best Results When Applying Thermal Paste and Pads

To ensure optimal cooling and performance, apply thermal materials correctly:

1. Clean Surfaces: Use 90%+ isopropyl alcohol and a lint-free cloth to remove old material and dirt. Ensure surfaces are dry and grease free.
2. Use the Right Amount: Apply a pea sized dot of thermal paste; too much can reduce effectiveness or cause damage.
3. Application Methods:
   • The dot method is beginner-friendly.
   • The X method suits larger CPUs.
   • Manual spreading is for advanced users; avoid air bubbles.
4. Applying Thermal Pads:
   • Ensure proper size.
   • Clean surfaces beforehand.
   • Apply gentle, even pressure.
5. Avoid Mistakes:
   • Don’t use excess paste.
   • Don’t reuse old paste.
   • Avoid spreading paste by hand if unsure.
6. Use Quality Materials: Trusted brands offer better thermal conductivity and ease of use.

Proper application keeps your system cooler, safer, and running longer.
