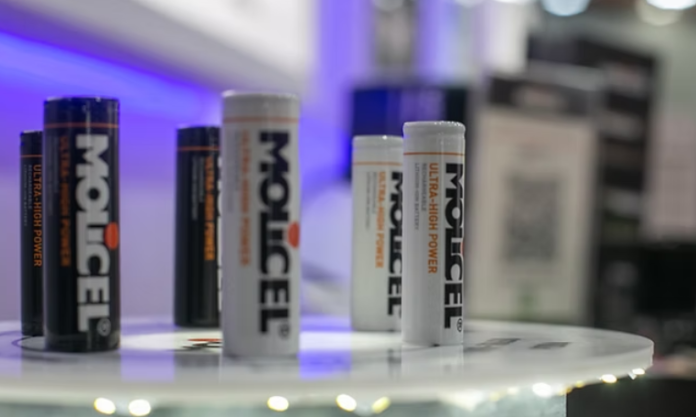

The Molicel INR-18650-P30B has quickly earned a reputation as a top ultra-high power cell, thanks to its impressive discharge capabilities, low internal resistance, and reliable performance under demanding conditions. Engineered for applications that require rapid energy delivery and sustained output, this battery combines advanced materials with precision design to maximize both power and efficiency. In this article, we explore the features and engineering innovations that make the INR-18650-P30B a standout choice for high-performance energy solutions.
Key Specifications of the INR‑18650‑P30B
Here are the key specifications of the INR‑18650‑P30B:
- Nominal Voltage: 3.6 V
- Typical Capacity: 3.0 Ah ( 10.8 Wh)
- Maximum Discharge Current: 36 A
- Maximum Power Output: Up to 100 W continuous discharge
- Fast Charge Capability: Up to 9 A (3C)
- Low Impedance: 15.39 mOhm internal resistance, reducing heat and energy loss.
- Energy Density: 234 Wh/kg, 631 Wh/L
- Cycle Life: 500 cycles at 100 W discharge (in75% capacity retention)
- Thermal Management: Optimized in-cell thermal distribution (~2 °C variation)
- Form Factor: 18650 (standard) — compatible with many existing packs and designs
This makes it ideal for devices that need high current such as power tools, garden tools , or high-drain electronics.
Low Internal Resistance
The INR‑18650‑P30B has very low internal resistance, which means it can deliver power quickly and efficiently with minimal energy loss or heat buildup.
- AC Impedance: 8 mΩ (at 30% state of charge)
- DC Resistance: 17 mΩ (at 50% state of charge)
What this means:
- Less voltage drop under load: The battery maintains stable voltage even when drawing high current.
- Less heat generation: Lower energy loss as heat improves safety and efficiency.
- Higher continuous discharge capability: Supports sustained high currents (30–36 A) without overheating.
- Better fast-charging performance: Reduced resistance allows quicker charging with less stress on the cell.
Low internal resistance lets the P30B deliver stable, efficient, high-power performance. This makes it perfect for high-drain devices like e-bikes, drones, and power tools that need strong power to perform well.
See also: Pgotoacom Best Technology Stocks for the Future
Ultra-High Discharge Capabilities
The INR‑18650‑P30B is built to safely provide very high amounts of current while working efficiently:
- Continuous Discharge Current: 30A
- Maximum Power Output: Up to 100 W continuous.
What this means:
- Instant power delivery: Perfect for devices that demand high current quickly such as e-bikes, drones, power tools, and motorsports applications.
- Stable performance under load: Maintains voltage and efficiency even during heavy discharge.
- Supports demanding applications: The high current capability ensures the battery can handle peak loads without overheating or voltage sag.
The P30B can deliver very high current, making it perfect for devices that need lots of power quickly and must run reliably.
Advanced Cell Architecture
The INR-18650-P30B works so well because every part inside the battery is carefully designed to lower resistance, provide strong power, and stable even during heavy use:
- Optimized Electrode Layout: Electrodes, current collectors (tabs), and internal interfaces are arranged to reduce resistance and evenly distribute current.
- Balanced Electrode Design: The battery’s electrodes are built to let ions and electrons move easily while keeping their structure stable.
- High-Quality Separator & Electrolyte: The battery has a top-quality separator and electrolyte that let lithium ions move easily, making the battery work more efficiently with less energy loss.
- Precision Manufacturing: Made with high-quality materials and assembled carefully so electricity flows easily, keeping the battery reliable and long-lasting.
- Thermal & Cycle Management: Keeps the battery cool and efficient, preserving performance over many charge and discharge cycles.
This advanced cell architecture allows the P30B to deliver high current safely, maintain stable voltage, reduce heat, support fast charging, and last longer, making it a reliable choice for high-power, high-performance applications.
Thermal Management and Stability
The INR‑18650‑P30B is designed to manage heat effectively, ensuring safe and reliable operation even under high power or fast charging conditions:
- Optimized In-Cell Thermal Distribution: The battery’s internal parts are arranged to spread heat evenly, preventing hotspots and lowering the chance of overheating.
- Low Internal Resistance: Reduces heat generation during charging and discharging, helping maintain a stable temperature.
- Durable Materials: The battery is made with top-quality materials for the cathode, anode, separator, and electrolyte, which help it stay strong and handle heat well.
- Cycle & Load Resilience: Built-in thermal design keeps the battery stable over repeated high-current use, maintaining capacity and performance.
The P30B stays cooler, safer, and more efficient under heavy loads, enabling high-power use, fast charging, and long-term reliability.
Fast-Charging Capability
The INR‑18650‑P30B supports high-speed charging thanks to its advanced anode design and low internal resistance:
- High Charge Rate: The battery can safely charge at about 3 times its capacity (around 9 A), which is much faster than most standard 18650 cells.
- Efficient Ion Flow: The battery uses improved graphite and silicon-carbon materials in the anode, along with an electrolyte that spreads and absorbs well. This helps lithium ions move quickly and smoothly, giving strong performance without causing the battery to overheat.
- Thermal Control: The battery stays cool while charging fast, which keeps it safe, reduces wear, and helps it last longer.
- Longevity Protection: Fast charging is supported without compromising safety or cycle life when proper charging protocols are followed.
The P30B can be recharged quickly while maintaining high efficiency, safe operation, and long-term durability, making it ideal for applications that require rapid turnaround.
Durability and Cycle Life
The INR‑18650‑P30B is designed for long-lasting performance, even under heavy use:
- Advanced Anode Materials: The silicon-carbon composite anode controls expansion and contraction during charge/discharge cycles, reducing stress and preventing electrode damage.
- Low Internal Resistance: Minimizes heat and internal stress, which slows capacity degradation over time.
- Robust Cell Design: Optimized electrode structure, uniform coatings, and high-quality manufacturing reduce mechanical wear and micro-cracking.
- Cycle Performance: Capable of 500 cycles at 100 W discharge while retaining approximately 75% of initial capacity, outperforming many standard 18650 cells.
The P30B is built to last, even in demanding devices that use a lot of power. This makes it ideal for high-performance devices used often such as e-bikes, drones, and power tools.
Applications That Benefit Most
- Sports & Off-Road eBikes: These vehicles demand bursts of high current for quick acceleration and maintaining power over uneven or steep terrain. The P30B’s low internal resistance and high discharge capability let the battery deliver this power efficiently without overheating or voltage drop.
- 2-Wheel Motorsports: E-motorcycles, dirt bikes, and motocross bikes need immediate power for acceleration and maneuvering. The P30B responds quickly to high current demands, ensuring smooth, reliable performance during rapid throttle changes.
- Micro-Mobility Devices: E-skateboards, e-surfboards, and similar personal transport devices are compact but high-drain. The P30B’s balance of power and energy allows it to run longer while still supporting fast bursts of speed when needed.
- Heavy-Lift Drones: Drones used for cargo, agriculture, or professional filming require sustained high-power output for long flight times. The P30B supports high continuous discharge without overheating, providing stable and reliable performance during long missions.
- High-End Power & Garden Tools: Tools like drills, saws, and lawn mowers demand steady power under heavy use. The P30B can maintain consistent voltage even at high load, improving efficiency and tool performance.
- Home Appliances: High-power devices like vacuum cleaners work better with the P30B because it can deliver strong, steady power without dropping performance. It also recharges quickly, so the appliance can be used again sooner.
The P30B excels in applications where high current, fast response, efficiency, and durability are important. Its low-impedance design ensures reliable, high-performance operation even under demanding conditions, making it suitable for both the premium application.
